Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Product Categories
Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Brand Name : LEADKIN

Model Number : LK-Ni

Certification : ISO,

Place of Origin : CHINA

MOQ : 100M

Price : USD 0.99-30/M

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1,000,000M/year

Delivery Time : 2-7 working days

Packaging Details : 68*68*8cm Carton

Sheath : SS304,SS321,SS316

Calibration : Pt100

Name : 3 Cores RTD Cable With 99.6% High Purity Mgo Insulation Material

Temperature range : -70~500℃

MOQ : 100M

Accuracy : 0.1%

Core : 3

Brand : LEADKIN

Contact Now

The RTD cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

Quick detail

Name:3 Cores RTD Cable With 99.6% High Purity Mgo Insulation Material

Type: Pt100

Conductor material: Ni

Insulator: 99.6% high purity MgO

Core number: 3

Sheath material: SS321(SS304), SS316

Dia(mm): 3.0mm to 12.7mm

Nominal Dimensions:

Out Dia. Length Sheath Thickness Wire Dia.
3 90 0.38-0.48 0.38-0.42
3.2 90 0.48-0.58 0.39-0.43
4 80 0.52-0.62 0.50-0.60
4.8 60 0.73-0.83 0.58-0.68
5 50 0.78-0.88 0.60-0.70
6 40 0.98-1.08 0.70-0.80
6.4 30 1.05-1.15 0.73-0.83
8 20 1.30-1.44 0.80-1.10

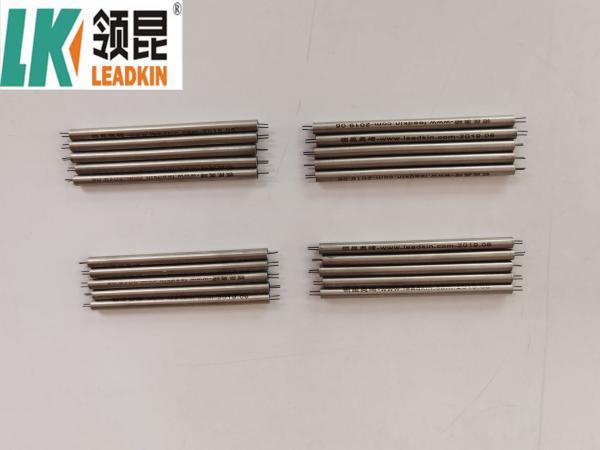

Product Pictures

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Company Information:

A. Main Products

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Sheathed Electrical 3 Wire RTD Cable Mgo Insulation Thermocouple PT100 8mm SS316

Order Notice:

1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
