PT100 SS316 4.0mm RTD Sensor Cable For Resistance Temperature Detector

Product Categories

Mineral Insulated Thermocouple Cable [96]
Mineral Insulated Heating Cable [54]
Mineral Insulated Metal Sheathed Cable [66]
RTD Sensor Cable [29]
Mineral Insulated Copper Cable [30]
Thermocouple Temperature Probe [78]
K Type Thermocouple Cable [53]
Type N Thermocouple Cable [27]
Type E Thermocouple Cable [18]
T Type Thermocouple Cable [18]
J Type Thermocouple Cable [20]
Type S Thermocouple Cable [15]

Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PT100 SS316 4.0mm RTD Sensor Cable For Resistance Temperature Detector

Name: PT100 SS316 40mm RTD Sensor Cable For Resistance Temperature Detector
Brand: LEADKIN
Price: 0.99 USD

Brand Name : LEADKIN

Model Number : LK-Ni

Certification : ISO,

Place of Origin : CHINA

MOQ : 100M

Price : USD 0.99-30/M

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1,000,000M/year

Delivery Time : 2-7 working days

Packaging Details : 68*68*8cm Carton

Sheath : SS304,SS321,SS316

Calibration : Pt100, pt1000

Name : 6 Cores 99.6% High Purity Mgo Insulation Material Mineral Insulated RTD Cable

Purity of MgO : ≥99.6%

MOQ : 100M

Size : Customized

Theory : Temperature Sensor

Brand : LEADKIN

Contact Now

RTD wire carries or extends the signal generated by RTD (Resistance Temperature Detectors) and is typical made with copper stranded wire coated with nickel, silver or tin to minimize any additional resistance in temperature measurement signal and withstand diverse application environments.RTD Wire is different than Thermocouple wire. The RTD wire carries the temperature measurement output where thermocouple wire can transfer and generate a temperature output.

Quick detail

Name: 6 Cores 99.6% High Purity Mgo Insulation Material Mineral Insulated RTD Cable

Type: Pt100

Conductor material: Ni

Insulator: 99.6% high purity MgO

Core number: 3

Sheath material: SS321(SS304), SS316

Dia(mm): 3.0mm to 12.7mm

The Temperature Range of Thermocouple & RTD

Thin Film Element	-200℃~100℃
Thin Film Element	-50℃~400℃
Ceramic Element	-200℃~600℃
T Type	-40℃~350℃
J Type	0℃~750℃
E Type	0℃~800℃
K Type	0℃~1000℃
N Type	0℃~1100℃
S Type	0℃~1100℃
R Type	0℃~1600℃
B Type	0℃~1600℃

Nominal Dimensions:

Out Dia.	Length	Sheath Thickness	Wire Dia.
3	90	0.38-0.48	0.38-0.42
3.2	90	0.48-0.58	0.39-0.43
4	80	0.52-0.62	0.50-0.60
4.8	60	0.73-0.83	0.58-0.68
5	50	0.78-0.88	0.60-0.70
6	40	0.98-1.08	0.70-0.80
6.4	30	1.05-1.15	0.73-0.83
8	20	1.30-1.44	0.80-1.10

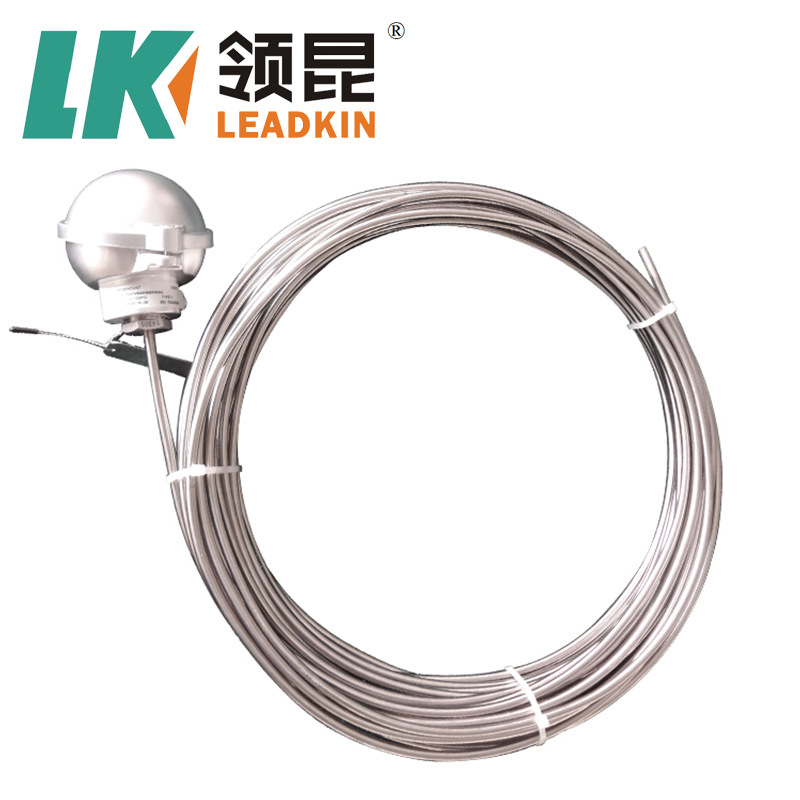

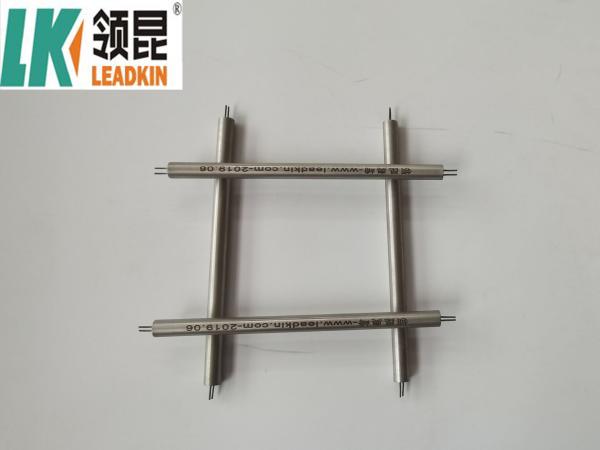

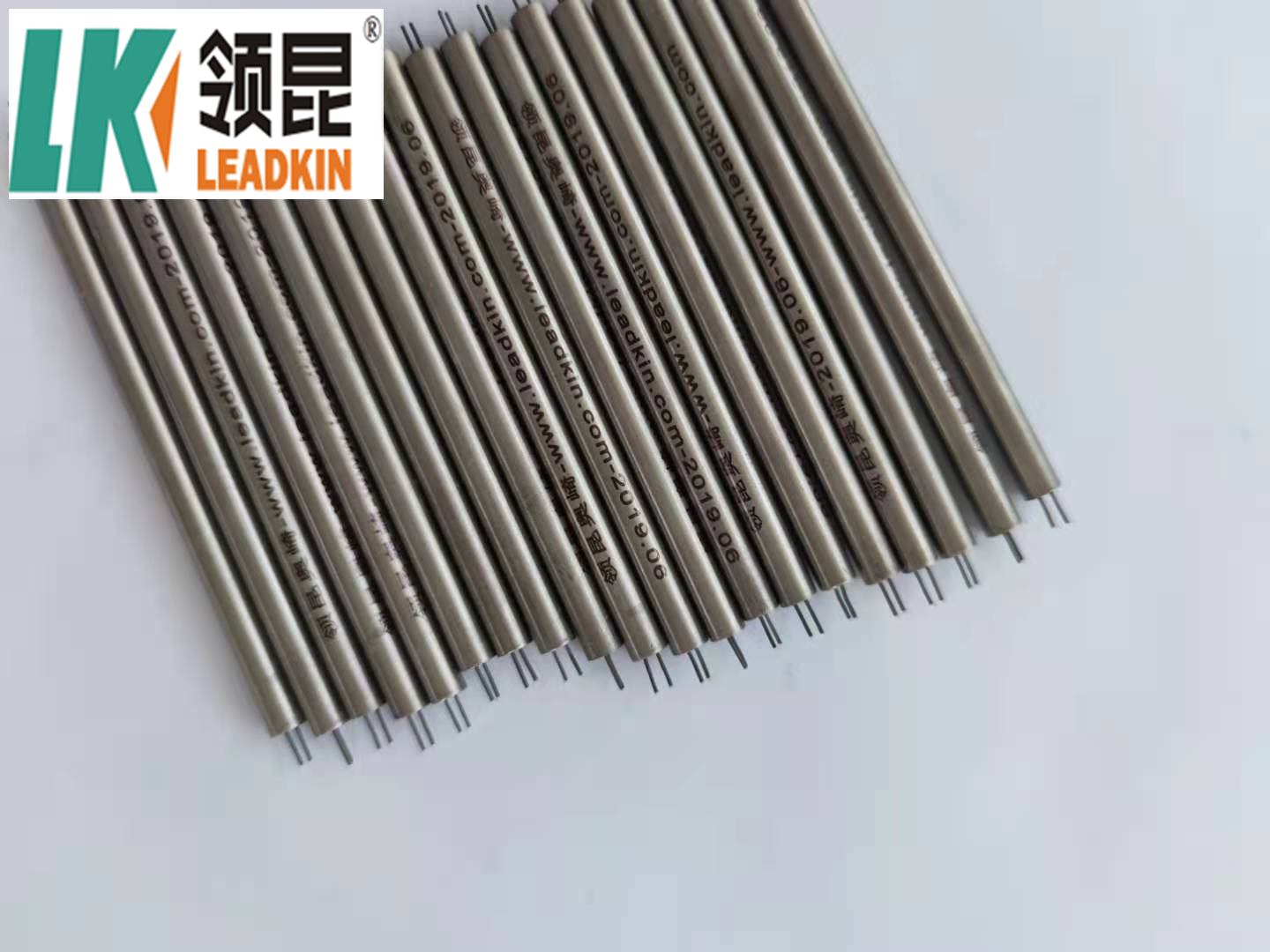

Product Pictures

PT100 SS316 4.0mm RTD Sensor Cable For Resistance Temperature Detector

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

PT100 SS316 4.0mm RTD Sensor Cable For Resistance Temperature Detector

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
