Durable J Type Thermocouple Cable with 99.6% High Purity MgO

Quick Details:

Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: Single / Double

Insulator: 99.6% high purity MgO

Certificate:ISO9001, IATF16949, CE

Application: connecting with thermocouple and instrument machine

Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Sheath material: Inconel600, 0Cr18Ni10Ti, SS304S,SS316L, SS310,SS316,GH3030, GH3039, GH747

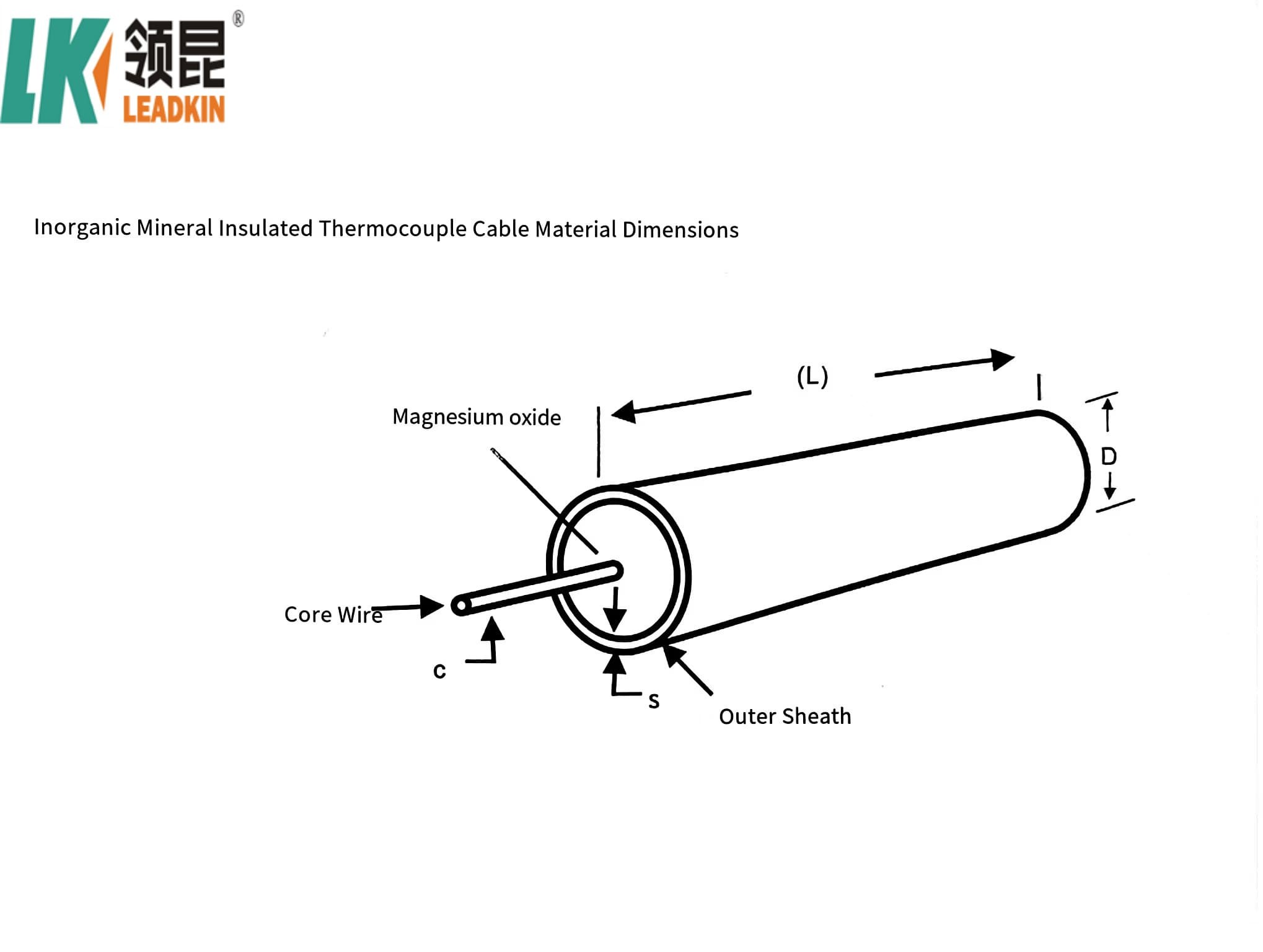

Sheath Dia(mm): 0.5mm to 12.7mm :φ0.5,φ1.0, φ1.5(1.6), φ2.0, φ3.0(3.2),φ4.0,φ5.0(4.8),φ6.0(6.4),φ8.0,φ12.7

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

About this product:

What is a Thermocouple?

• A thermocouple is a type of transducer that converts thermal energy into electrical energy. It is made by joining wires of dissimilar metals to create a junction. When the temperature at this junction changes, it generates a voltage that can be measured and used to determine the temperature.
• The thermocouple operates based on the Seebeck Effect, which states that when dissimilar metals are joined at a junction, they generate a small, measurable voltage in response to changes in the temperature at that junction. The magnitude of the voltage produced depends on both the temperature change and the properties of the metals used.
• A thermocouple is composed of two insulated wires made from different metals, which are connected to a measuring device. It functions as a safety and monitoring tool for various processes and equipment, providing crucial temperature measurements and ensuring proper operation.
• The operation of a thermocouple is illustrated in the image below. As the temperature increases at the junction of the wires on the left, the resulting temperature change is displayed on the gauge on the right.
• Thermocouple assemblies are engineered for use in harsh, severe, and demanding environments. The selection of a thermocouple depends on factors such as the temperature range, ambient atmosphere, and the type of media being measured. Additionally, the size and shape of the thermocouple are tailored to the specific application, considering factors like required accuracy and response speed.

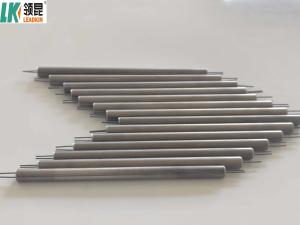

Product Pictures

Company Information:

A. Main Products

products details:

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Order Notice:

1. Accurate quotation.

2. Confirm the price, trade term, lead time, payment term etc.

3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

6. End Production-Mass production products photos.

7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

8. The order is finished perfectly when you receive the goods and get satisfied with them .

9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
